DEC-9100 Series Single-Phase Test Bench Selection

Kwh/Energy Meter Test Bench Single-phase Kwh/Energy Meter test bench

Quick Overview

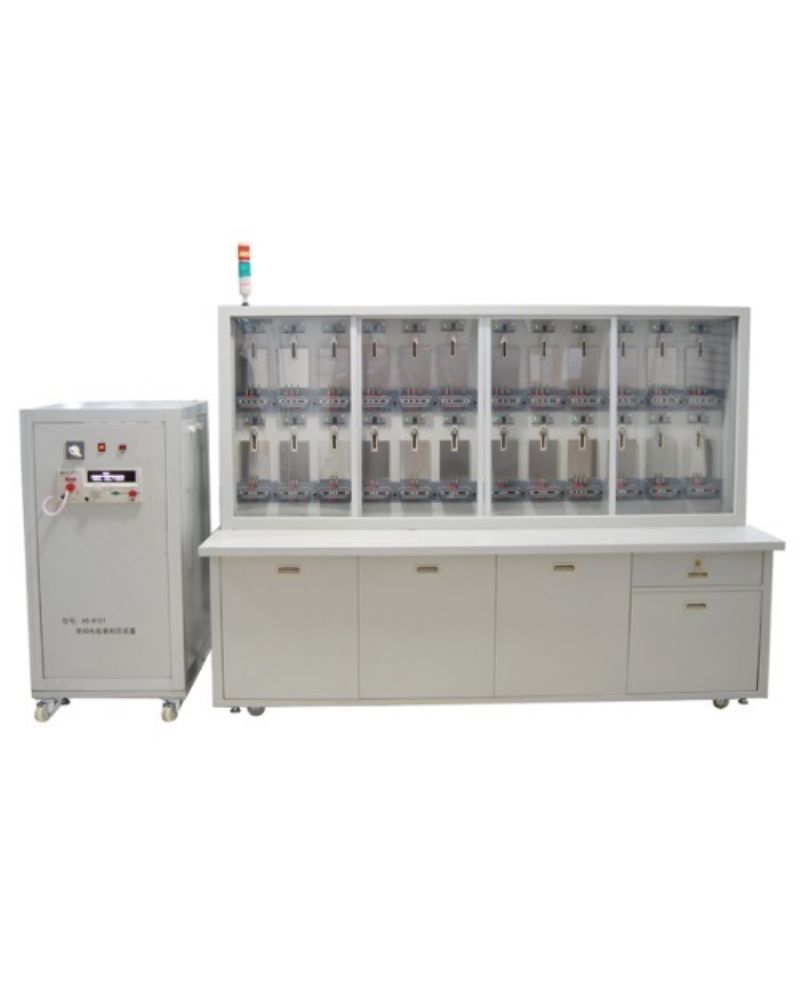

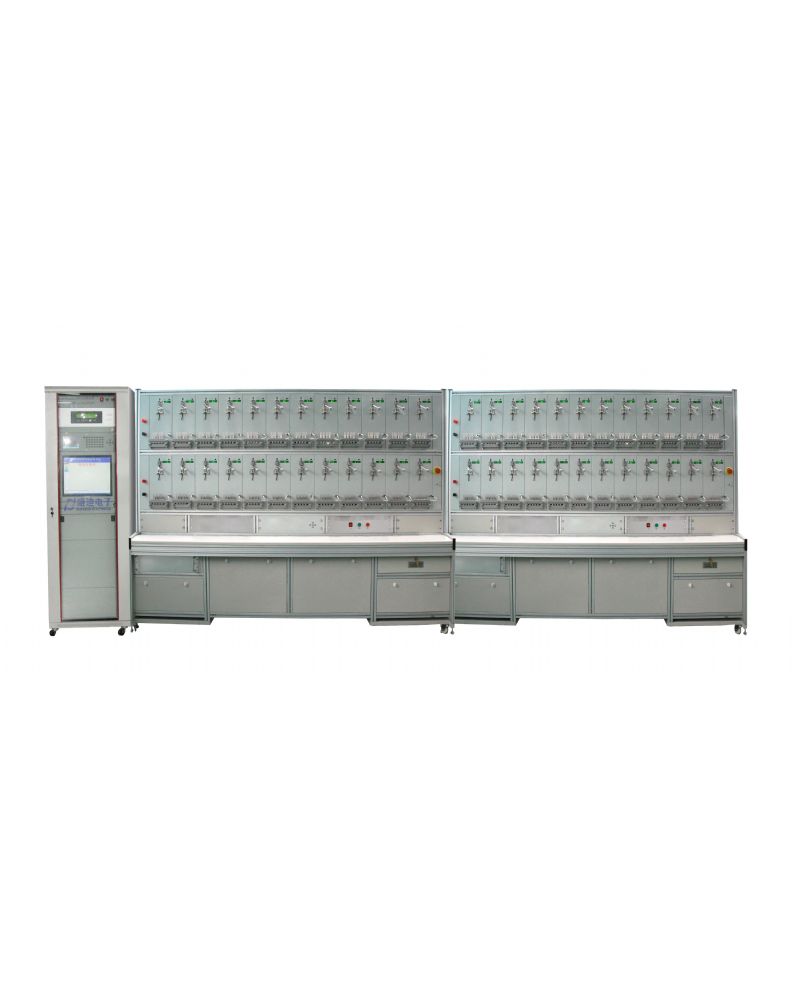

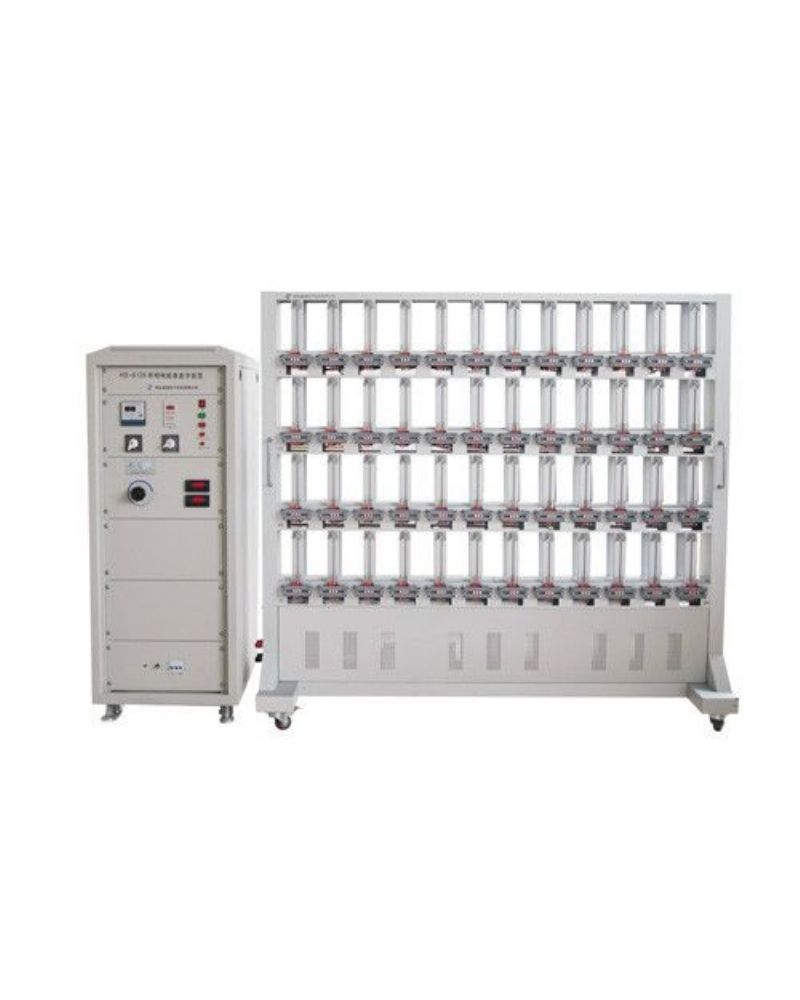

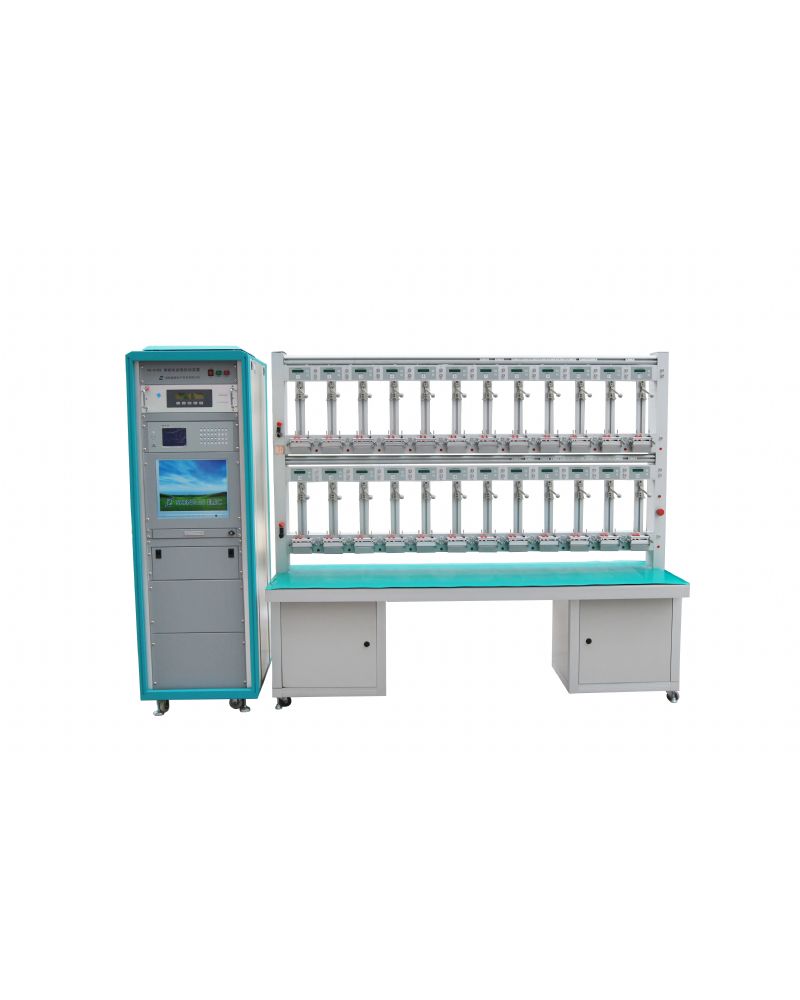

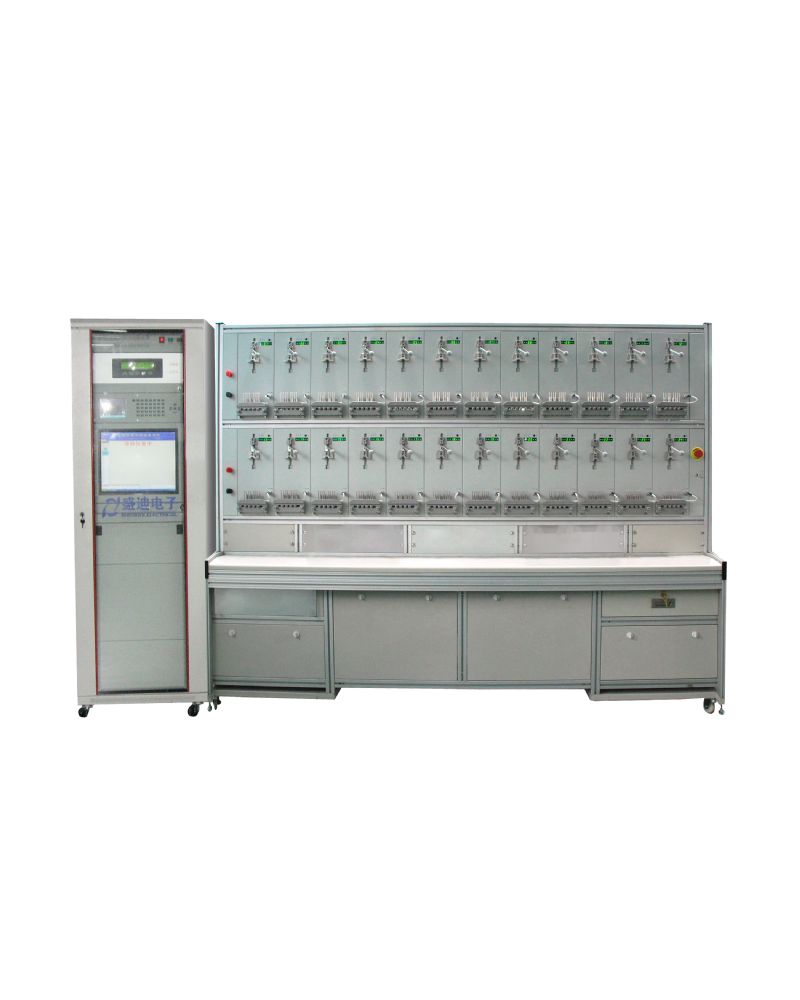

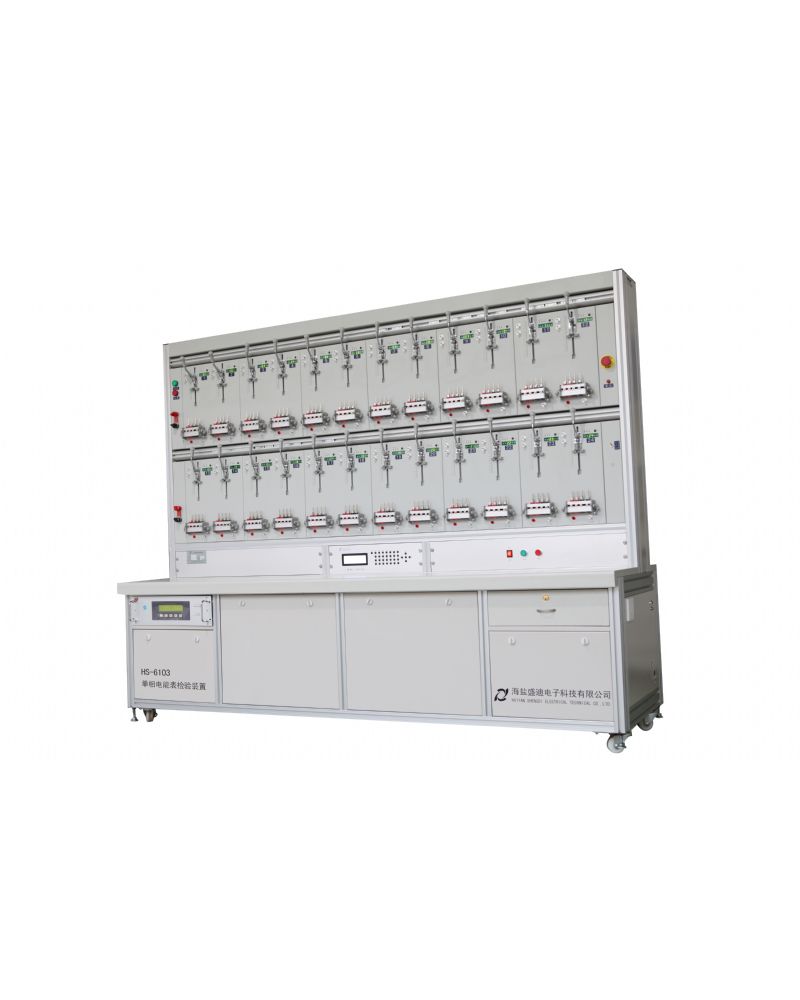

DEC-9103 single-phase energy meter testing bench adopts SPWM digital power source technology, comprises high grade standard digital watt-hour meter, multi-path voltage transformer, can implement multi-station high accuracy error testing.

OnLine Service:
Share:

1.Introduction
DEC-9103 single-phase energy meter testing bench adopts SPWM digital power source technology, comprises high grade standard digital watt-hour meter, multi-path voltage transformer, can implement multi-station high accuracy error testing.

This testing bench configurates humanized PC processing software, can provide integrated solution of the energy meter automatic check. Meanwhile, it provides the requested DLL of the second development, has improved the self-control and management for the bench by customer.

This testing bench can be widely used for the energy meter measurement and testing in electric power, water conservancy, traffic transportation and colliery departments, as well as the energy meter testing and production of the energy meter manufacturer.

This series of testing bench can test all kind of single-phase energy meters, single-phase multi-function meters, single-phase intelligent meters, other meters with special wiring and ANSI standard meter. It is an ideal new generation multi-station energy meter testing device.

2.Characteristic

 Base on A/D and DSP technology

 Adopt precise digital synthesized technology and sine PWM technology

 Adopt intelligent system control technology, multi-CPU coprocessing technology

 Reliable multi-path pulse testing and precise error testing treatment technology

 SPWM technology power amplifier, large capacity, high performance, low power consumption, automatic warning protection

 Error processor of each station distributed networking, heavy current protection, support multi-path pulse signal input

 Can configurate serial server, implement parallel communication of muti-station, improve work efficiency

 Modular design, have good universality of parts, easy to disassemble and maintain

 One-button checking and control management system, automatic finish as per the project

 Standard cabinet, aluminum alloy frame, nicer and stronger

 Customized as per specific function

3.Outline dimension

Integration

Stations

Number of rack

Dimension

L×W×H

(mm)

Fission

Stations

Number   of rack

Dimension

L×W×H

 (mm)

6

1

1600×750×1600

12

1

1600×700×1920

Custom

24

1

2200×700×1920

12

1

1600×750×1920

48

2

2200×700×1920

24

1

2200×750×1920

60

2

2000×700×1920

48

2

2200×750×1920

Cabinet

600×800×1920



1.Specification model
DEC-9100 Series Single-Phase Test Bench Selection

2.Function parameter
DEC-9100 Series Single-Phase Test Bench Selection

3.Device configuration
DEC-9100 Series Single-Phase Test Bench Selection
